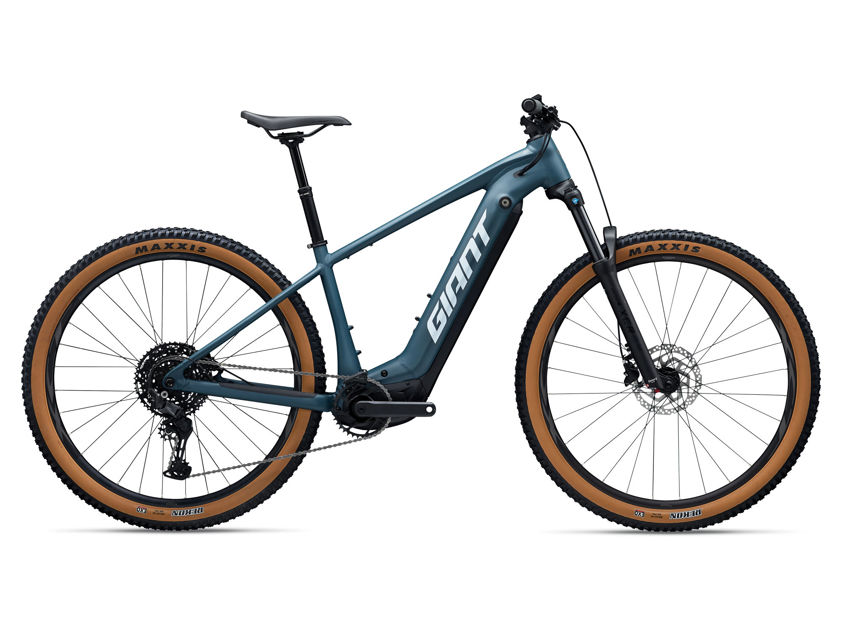

Fathom E+

• Motor: Giant SyncDrive Pro 2 85Nm PedalPlus 6-Sensor technology
• Controller: Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
• Display: Giant RideControl Dash 2, high-angle visibility, full color LCD display
• Battery: Giant EnergyPak Smart 750Wh
• Charger: Giant EnergyPak smart charger 4A
• Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
• Sizes: S, M, L, XL
• Colours: Deep Lake
• Frame: ALUXX aluminum, Overdrive 1.125" - 1.8" head tube, 148x12mm Thru-axle, integrated KSA40 kickstand mount
• Fork: SR Suntour XCR34 2CR coil boost 130mm travel 15x110mm AH axle
• Shock: -
• Handlebar: Giant Connect TR Riser 31.8x750mm [S], 780mm [M-XXL]
• Grips: Giant Sole-O
• Stem: Giant Contact
• Seatpost: Giant Contact Switch Core dropper seatpost, 100mm travel
• Saddle: Giant Ergo Contact Trail, ESG
• Pedals: Anti-slip Platform
• Shifters: Shimano Cues
• Rear Derailleur: Shimano Cues 10-speed
• Brakes: Shimano MT200, hydraulic disc,180mm [F/R]
• Brake Levers: Shimano BL-MT200
• Cassette: Shimano Cues11-48T 10-speed
• Chain: Shimano Linkglide CN-LG500
• Crankset: Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms
• Rims: Giant XCT 29 Tubeless Ready 25mm e-bike optimized
• Hubs: eTracker boost alloy 6-bolt disc 15x110mm[F] 12x148mm[R]
• Spokes: Stainless steel
• Tyres: Maxxis Rekon 29x2.4", EXO, 60TPI
• Extras: HMI 2.0 including E locking and Apple Find My
• Lighting: -
• Lock: ABUS Xplus battery lock
• Carrier: -

• Size Name: S
• Seat Tube Length: 380
• Seat Tube Angle: 75
• Top Tube Length: 590
• Head Tube Length: 110
• Head Tube Angle: 66
• Fork Rake: 51
• Wheel Base: 1197
• Chain Stay Length: 470
• Bottom Bracket Drop: 65
• Stack: 647
• Reach: 416
• Handlebar Width: 750
• Stem Length: 40
• Crank Length: 165
• Wheel Size (Alt): 29"
• Size Start: 162
• Size End: 172
