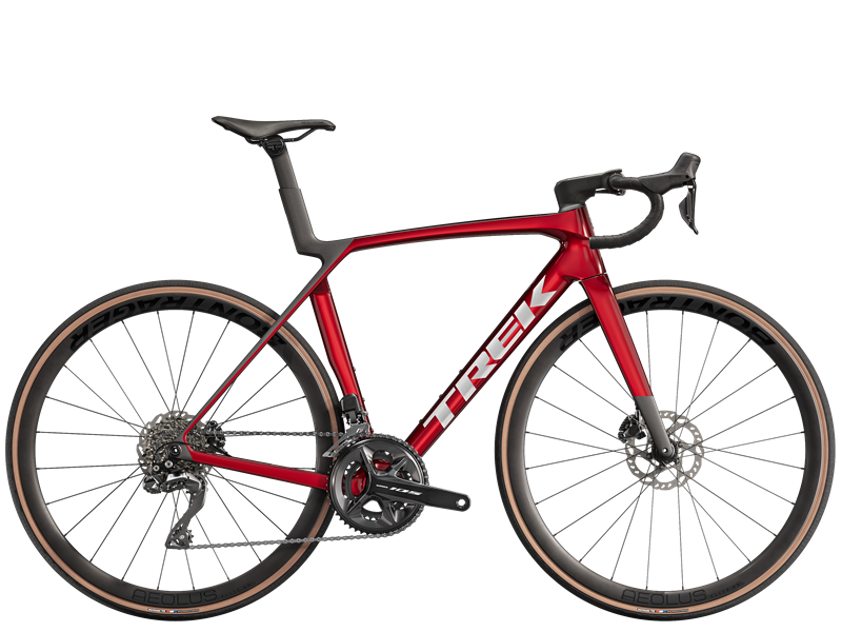

The Madone SL 6 Gen 8 is a lightweight aero road bike that
brings elite racing tech to a lower price point with a more economical OCLV 500
Carbon lay-up than its SLR sibling. A Shimano 105 Di2 electronic group set
gives you lightning-fast electronic shifting and pairs with alloy handlebars to
keep the price down. Plus, it's topped off with carbon wheels for extra
lightweight performance.
Specifications:
|
Frameset |
|
|
Frame |
500 Series
OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset
System, electronic or mechanical routing, removable aero chain keeper, T47
BB, flat mount disc, UDH, 142x12 mm thru axle |
|
Fork |
Madone Gen 8
full carbon, tapered carbon steerer, internal brake routing, flat-mount disc,
12x100 mm chamfered thru axle |
|
Weight |
|
|
Weight |
ML - 8.16 kg
/ 17.99 lbs (with TLR sealant, no tubes) |
|
Weight limit |
This bike has
a maximum total weight limit (combined weight of bicycle, rider and cargo) of
125 kg (275 lb). |
|
Drivetrain |
|
|
Front
derailleur |
Shimano 105
R7150 Di2, braze-on, down swing |
|
Rear
derailleur |
Shimano 105
R7150 Di2, 36T max cog |
|
*Crank |
Size: XS,
S Size: M, ML Shimano 105
R7100, 50/34, 170 mm length Size: L, XL Shimano 105
R7100, 50/34, 172.5 mm length |
|
Bottom
bracket |
|
|
Cassette |
Shimano 105
7101, 11-34, 12-speed |
|
Chain |
Shimano SLX
M7100, 12-speed |
|
Max.
chainring size |
1x: 54T, 2x:
56/43 |
|
Wheels |
|
|
Wheel front |
Bontrager Aeolus Elite
50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle |
|
Wheel rear |
Bontrager
Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano
11-speed freehub, 142x12 mm thru axle |
|
Skewer front |
|
|
Skewer rear |
|
|
Tyre |
Bontrager R3
Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
|
Rim strip |
|
|
Max tyre size |
32 mm (as
measured, see manual for details) |
|
Components |
|
|
Saddle |
|
|
Seatpost |
|
|
Handlebar |
Size: XS Size: S, M Bontrager
Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm
drop width Size: ML, L Bontrager
Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm
drop width Size: XL Bontrager
Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm
drop width |
|
Handlebar
tape |
|
|
*Stem |
Size: XS Size: S, M Trek RCS Pro,
-7-degree, 90 mm length Size: ML,
L |
|
Rotor size |
Max brake
rotor sizes: 180 mm front, 160 mm rear |
