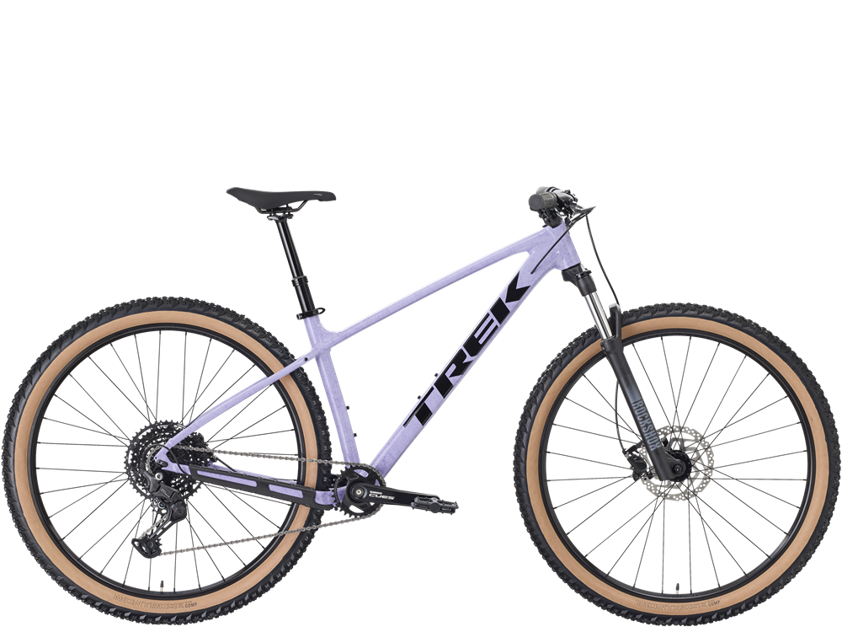

marlin 6 - gen 3 (2026)

Frameset

*Frame

Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

*Frame

Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

*Fork

Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel.

Size: M , ML , L , XL , XXL

RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front

Formula DC-20, alloy, 6-bolt, 100 mm

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm

Skewer rear

173x5 mm QR

*Rim

Size: XS , S , M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

Size: M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve

*Tyre

Size: XS , S: Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35''

Size: M , ML , L , XL , XXL:

Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"

Rim strip

Bontrager TLR

Drivetrain

Shifter

Shimano U6000, 10-speed

Rear derailleur

Shimano CUES U6000 GS

*Crank

Size: XS , S , M , ML: Shimano U4000, 30T chainring, 170 mm length

Size: L , XL , XXL: Shimano U4000, 30T chainring, 175 mm length

Bottom bracket

Shimano, 73 mm, threaded cartridge, 122.5 mm spindle

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Chain

Shimano LG500

Pedal

VP-536 nylon platform

Components

Saddle

Bontrager Verse Short, stainless steel rails

*Seatpost

Size: XS , S

TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length

Size: M

TranzX JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length

Size: ML , L , XL
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length

Size: XXL

TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length

*Handlebar

Size: XS

Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width

Size: M , ML , L , XL , XXL

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Trek Line Comp, nylon lock-on

*Stem

Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length

Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

Head set

Semi-integrated, 1-1/8"

Brake

Shimano MT200 hydraulic disc

*Brake rotor

Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160 mm

Size: M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight

Weight

M - 15.00 kg / 33.07 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
