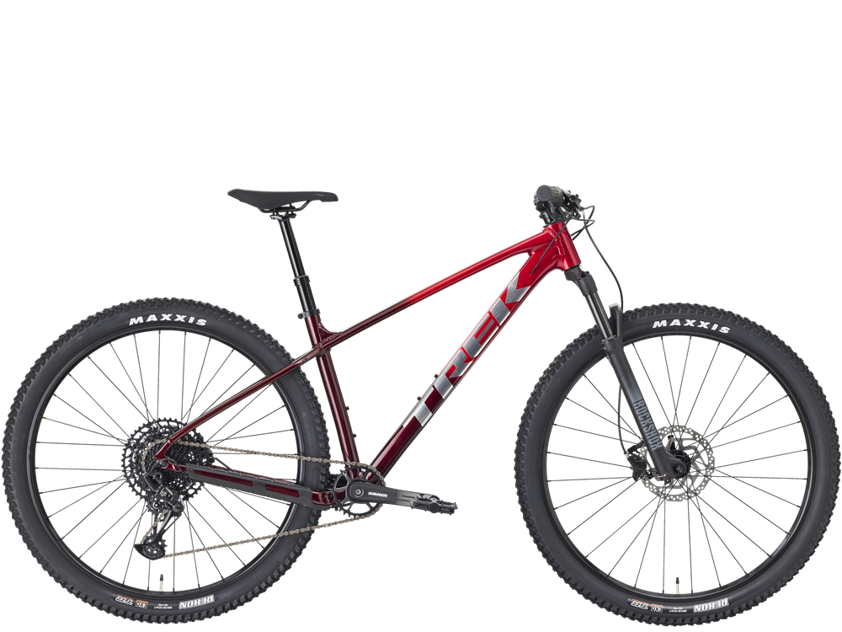

The Marlin 7 is your best friend on the trail and wherever
else you roll thanks to its confidence-boosting trail geometry. It finds the
perfect balance between price and performance with a RockShox suspension fork
that makes quick work of rocks and bumps in your path and loads of gears from
the SRAM NX Eagle 12-speed drivetrain.
SPECIFICATIONS
*Please note – spec applies to all sizes unless listed
separately
|
Frameset |
|
|
*Frame |
Size: XS Alpha Silver
Aluminium, curved top tube, internal derailleur and dropper post routing,
rack and kickstand mount, 135x5 mm ThruSkew Size: S
, M , ML , L , XL , XXL Alpha Silver
Aluminium, internal derailleur and dropper post routing, rack and kickstand
mount, 135x5 mm ThruSkew |
|
*Fork |
Size: XS
, S RockShox Judy
Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm
offset for 27.5" wheel, 100 mm QR, 100 mm travel Size: M , ML
, L , XL , XXL RockShox Judy
Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm
offset for 29" wheel, 100 mm QR, 100 mm travel
|
|
Wheels |
|
|
Hub front |
Formula DC-20
LW, alloy, 6-bolt, 100x5 mm |
|
Hub rear |
Formula
DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer rear |
|
|
*Rim |
Size: XS
, S , M , ML , L , XL , XXL Size: M , ML
, L , XL , XXL Bontrager
Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
|
*Tyre |
Size: XS
, S Maxxis Rekon,
tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40'' Size: M
, ML , L , XL , XXL |
|
Rim strip |
|
|
Drivetrain |
|
|
Shifter |
SRAM SX
Eagle, 12-speed |
|
Rear
derailleur |
SRAM NX
Eagle, 12-speed |
|
*Crank |
Size: XS
, S , M Size: ML
, L , XL , XXL SRAM SX
Eagle, 30T steel ring, 49 mm chainline, 175 mm length |
|
Bottom
bracket |
Truvativ
Powerspline, 73 mm, threaded cartridge, 118 mm spindle |
|
Cassette |
SRAM PG-1210
Eagle, 11-50, 12-speed |
|
Chain |
SRAM SX
Eagle, 12-speed |
|
Pedal |
|
|
Components |
|
|
Saddle |
|
|
*Seatpost |
Size: XS
, S TranzX
JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length Size: M TranzX
JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length Size: ML
, L
TranzX
JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length |
|
*Handlebar |
Size: XS
Bontrager
alloy, 31.8 mm, 5 mm rise, 690 mm width
Bontrager
alloy, 31.8 mm, 15 mm rise, 720 mm width Size: M , ML
, L , XL , XXL Bontrager
alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
Grips |
|
|
*Stem |
Size: XS , S Bontrager
Comp, 31.8 mm, 7-degree, 35 mm length Size: M , ML
, L Bontrager
Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Bontrager
Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: XXL Bontrager
Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
Head set |
Semi-integrated,
1-1/8" |
|
Brake |
Shimano MT200
hydraulic disc |
|
*Brake rotor |
Size: XS
, S , M , ML , L , XL , XXL Size: M , ML
, L , XL , XXL Shimano RT26,
6-bolt, 180 mm |
|
Brake Set |
Shimano MT200
hydraulic disc |
|
Weight |
|
|
Weight |
M - 14.15 kg
/ 31.2 lbs |
|
Weight limit |
This bike has
a maximum total weight limit (combined weight of bicycle, rider and cargo) of
136 kg (300 lb). |
