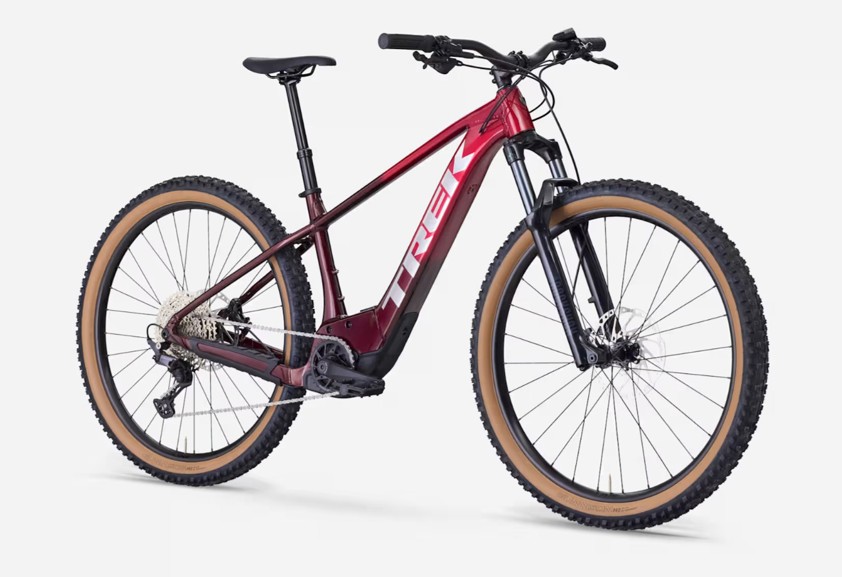

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
*Please note – spec applies to all sizes unless listed
separately
Frameset
*Frame
Size: XS
Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing,
rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and
kickstand mount, UDH, Boost148, 12 mm thru axle
Fork
Size: M , L , XL
RockShox Recon
Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm
offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels
Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Size: XS , S , M , L , XL
Bontrager Line TLR
30, Tubeless-Ready, 28-hole, Presta valve
Size: XS , S , M , L , XL - Bontrager Line TLR 30,
Tubeless-Ready, 32-hole, Presta valve
Spokes: 14 g stainless steel, black
Tyre
Size: XS , S - Bontrager Gunnison Pro XR, Tubeless
Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
Size: M , L , XL - Bontrager Gunnison Pro
XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: Frame: 29x2.6" (XS: 27.6x2.6")
Fork: See manufacturer
E-system
Battery: Bosch CompactTube 400 Wh
Charger: Bosch standard 2A, 230V, smart system
Computer: Bosch Purion 200
Motor: Bosch Active Line Plus, 50 Nm
Drivetrain
Shifter: Shimano Deore M6100, 12-speed
Rear derailleur: Shimano Deore M6100, long cage
Crank: FSA CK-220, 165 mm
length
Chainring: FSA, 32T, steel
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 36T, min 32T
Components
Saddle: Bontrager Verse P3, steel rails
Seatpost:
Size: XS , S - TranzX JD-YSP18, 100 mm travel, internal
routing, 31.6 mm, 361 mm length
Size: M , L , XL - TranzX JD-YSP18, 150 mm travel,
internal routing, 31.6 mm, 470 mm length
Handlebar - Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager Comp,
alloy, 31.8 mm, 40mm rise, 780 mm width
Grips: Trek Line Comp, nylon
lock-on
Stem
Size: XS , S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm
length
Size: M , L - Bontrager Comp, 31.8
mm, Blendr compatible, 7-degree, 50 mm length
Size: XL - Bontrager Comp, 31.8
mm, Blendr compatible, 7-degree, 60 mm length
Headset: Semi-integrated,
sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420
calliper
Brake rotor: Shimano RT64, CentreLock, 203 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180
mm, fork: see fork manufacturer
Weight
Weight: M - 21.89 kg / 48.26 lbs (with TLR sealant, no
tubes)
Weight limit: This bike has a maximum total weight limit
(combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product
information contained on this site at any time without notice, including with
respect to equipment, specifications, models, colours, materials and pricing.
Due to supply chain issues, compatible parts may be substituted at any time
without notice.
Bike and frame weights are based on pre-production painted
frames at time of publication. Weights may vary in final production.
