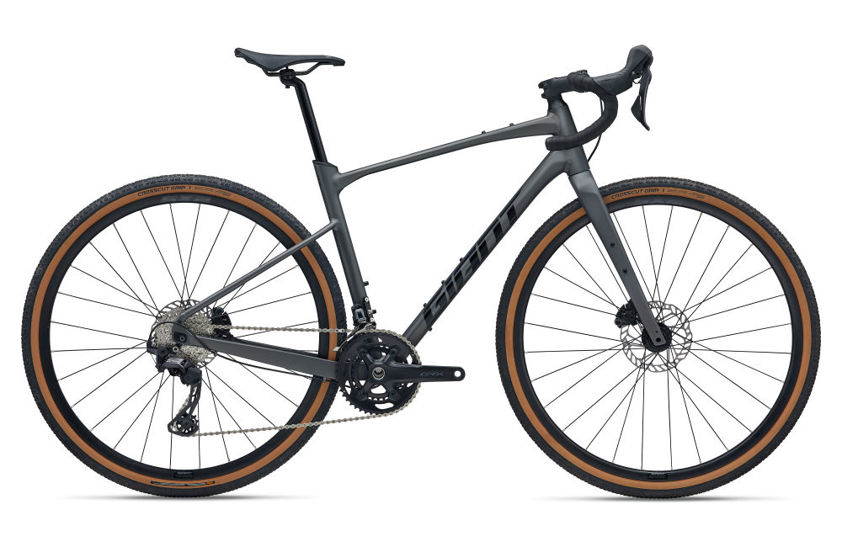

Ride roads, gravel or dirt with this versatile aluminium
all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you
adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter
chainstays for precise handling, agility and control. A longer reach, shorter
stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and
vibrations. The D-Fuse handlebar and seatpost work as a system to add
compliance without sacrificing stiffness while cornering, sprinting or
climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short
for quicker handling and acceleration, or long for improved stability at speed.
The long setting allows for larger diameter tires up to 53mm. You can choose
the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm
round or dropper post.
Specifications
|
Sizes |
S, M, M/L, L,
XL |
|
Colours |
Stealth /
Chrome |
|
Frame |
ALUXX-grade
aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|
Fork |
Advanced-grade
composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
|
Handlebar |
Giant Contact
XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
|
Stem |
Giant
Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
|
Seatpost |
Giant D-Fuse,
alloy, 14mm offset |
|
Saddle |
Giant Grit |
|
Pedals |
PEDALS NOT
SUPPLIED |
|
Shifters |
Shimano GRX
RX-610, 2x12 |
|
Front
Derailleur |
Shimano GRX
RX-820 |
|
Rear
Derailleur |
Shimano GRX
RX-820 |
|
Brakes |
Shimano GRX
RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
|
Brake Levers |
Shimano GRX
RX-610 hydraulic |
|
Cassette |
Shimano 105,
11x34 |
|
Chain |
KMC X12L-1 |
|
Crankset |
Shimano
FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm,
XL:175mm |
|
Bottom
Bracket |
Shimano,
threaded |
|
Rims |
Giant S-X2 ,
alloy |
|
Hubs |
Giant alloy,
12mm thru-axle |
|
Spokes |
stainless |
|
Tyres |
Giant
Crosscut Grip TR, 700x40c, tubeless |
|
Extras |
tubeless
prepared |
|
Max Tyre
Clearance |
53mm max tyre
size in "long" flip chip position, 45mm max tyre size in
"short" flip chip position with 1x drivetrains. Max tyre size with
a 2x drivetrain is 45mm in the long position. |
